SIMI - Modular MIDI Display

Buy NowUltimate PedalBoard Display
by Molten Voltage

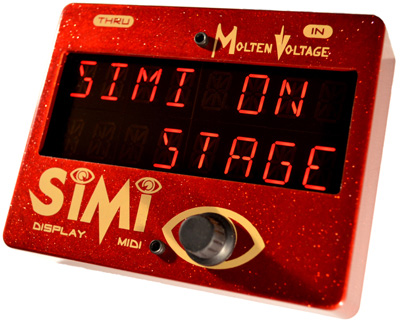

SIMI™ ("See Me") is a simple-to-use Modular MIDI PedalBoard Display that features 16 Large Bright Red Alphanumeric LEDs.

SIMI is amazingly simple to use. Just send a MIDI Program Change, and SIMI displays your custom message.



SIMI works with any MIDI controller.



Adding a display to your PedalBoard has never been easier!


angled



Key Features

• A bright alphanumeric display for your PedalBoard

Give one to each member of the band, and let them program their own custom messages

Tall, easy-to-read LED segments

Store and recall custom text for each of 128 MIDI programs

Simple to program - hold down the knob until the first character blinks, turn the knob to select, press to change segments, then hold down the button when finished!

• Lots of additional characters

RealTime Message capability for use with Cakewalk, Sonar, etc.

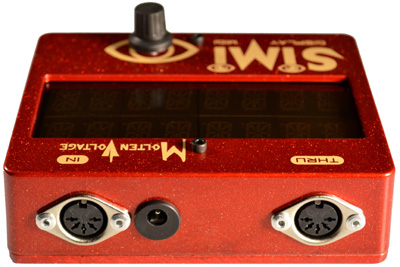

• Buffered MIDI Thru Output Jack to daisy chain additional devices, or another SIMI...

• Compact design for modular PedalBoard layouts

• Solid, Professional-Grade construction, including Riveted Steel MIDI Jacks

PedalBoard Bling at its finest!!!


MIDI PedalBoard Controllers which work with SIMI include:

Molten Voltage | MASTER CONTROL |

VooDoo Lab | Ground Control Pro |

TheGigRig | G2 |

Keith McMillen Instruments | SoftStep | SoftStep 2 |

Tech 21 | MIDI Moose | MIDI Mouse |

Rocktron | MIDI Raider | MIDI Xchange | MIDI Mate |

Diezel | Columbus |

Roland | FC200 |

Behringer | FCB-1010 |

RJM Music Technology | Mastermind | Mastermind GT |

Fractal Audio Systems | MFC-101 |

Nobels | MF-1 | MF-2 |

One Control | Gecko MIDI Switcher |

Musicom Lab | EFX MKIII+ |



SIMI works with any MIDI Device that sends Program Change messages.







SIMI is also used as the display for programming OSMOSIS, our MIDI Mapper and Filter...









SIMI is powered by standard "BOSS" type 9-volt DC, 2.1mm, 100mA min., tip negative power supply (sold separately). Current draw ~ 200mA.

Dimensions: 4.9" (123mm) Wide x 3.9" (99mm) Deep x 2.1" (51mm) Tall





Bomb-proof design ensures flawless functioning.  Road-ready MIDI Machinery™.

Hand built in Oregon, USA by Molten Voltage.



SIMI Owner's ManualSIMI Owner's Manual



SIMI-SYSEX RealTime Message Utility for PC
- extract the .zip file then just copy the .exe file to your desktop and double click!
- read the Software License Agreement before using
