Molten MIDI 5

Buy NowDigitech Whammy DT Controller
by Molten Voltage

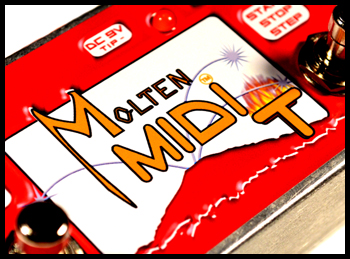

MM5 & Whammy 5MOLTEN MIDI T™ is a programmable stompbox that offers five original new ways to control the Digitech Whammy DT.

MOLTEN MIDI T lets you access notes that aren't normally available on the Whammy and sequence them into
elegant harmonies and improbable riffs which can automatically loop or change each time you press the button.

Molten MIDI T stores 19 programs, that are created manually or using our free, easy-to-use Programming Utility. Mac and PC versions of the Programming Utility can be downloaded at the bottom of this page.

Click here if you have a Digitech Whammy 4angled

Click here if you have a Digitech Whammy 5

Click here if you have a Digitech Bass Whammy


Molten MIDI T works just like MM5...



Easy to Use!

MOLTEN MIDI T comes with 19 cool programs to get you started. Programs are selected using the footswitches and are indicated using the Whammy's own LEDs. The Whammy works normally when Molten MIDI T isn't sending data.


"Wow! Molten MIDI turns the Digitech Whammy into a step sequencer and reveals an almost limitless number of sounds and effects."MM5 rear

"A great way to stimulate new musical ideas."

"Also allows you to choose original Whammy presets without having to bend over and turn knobs."


"The Digitech Whammy pedal is one of the coolest stomp boxes ever, but Molten Voltage
has figured out a way to make it even cooler.
"

"Molten MIDI produces effects a Whammy pedal can't produce on its own."

"The synth-like sequencer effects greatly increase a Whammy pedal's versatility and provide unique 16-step patterns that even sophisticated pitch shifters like the Eventide Pitch Factor and DigiTech TimeBender can't duplicate."

"The sliding portamento effects are especially cool and worth the pedal's price on their own."

"Molten MIDI gives the Whammy new life and provides hours of creative inspiration."

"Imagine having 16 Whammy pedals, all lined up in a signal chain with each one set to just one of the steps. Each Whammy processes each note, one at a time."

"Molten Voltage offers a sequenced pitch shifter that has fantastic results, creating intricate melodies by playing a single note on the guitar."

"Greatly expands the Whammy's tonal capabilities, giving a more synth-like vibe to the tones that it creates."

"Fans of Digitech's rare Bass Whammy pedal can recreate its famed 5th UP/OCT UP setting."

"Molten MIDI is one of those devices that reminds me why I love cool, interesting guitar sounds."

"I was able to achieve some really wild, unique tones, and rediscovered my affection of the Whammy pedal in the process."

"Molten MIDI's greatest strength, however, is that it forces the use of the Whammy to be musical, and not just some gadget that makes crazy sounds that some players might only use for one song."




Programs come in 5 different types and can be up to 16 steps each:

• Loop Portamento programs cycle through sequences of virtual expression pedal positions. "Portamento" means you hear the Whammy "slide" from one step to the next, rather than "jump", as if the expression pedal is moving.

• Loop, No Portamento programs are just like the Portamento version, except Whammy doesn't "slide" from one position to another, it "jumps".

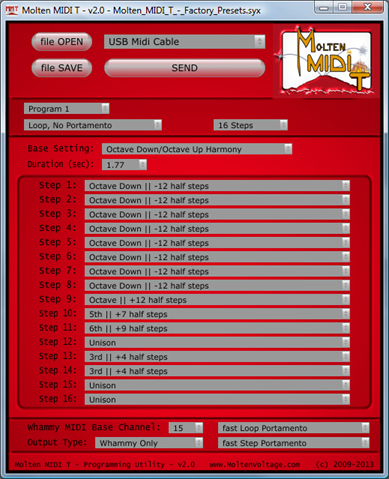

Programming Utility• Step Portamento programs step through sequences of virtual expression pedal positions each time the Step button is pressed. As the Whammy changes to a new "virtual" position, you hear it "slide" up or down to the new position.

• Step, No Portamento programs are just like the Portamento version, except Whammy doesn't "slide" from one position to another each time Step is pressed, it "jumps".

• Different Settings programs step through selected Whammy settings each time the Step button is pressed. The virtual position of the expression pedal is not affected.



Making your own programs is a snap with our Free Programming Utility, which can be downloaded at the bottom of this page.

Programs can also be created manually as shown in this video:

Programming Vid



Connections

Molten MIDI T connects to your stock Whammy using a standard MIDI cable - no modifications required!

Molten MIDI T requires a separate or isolated 2.1 mm, tip-negative, 9 volt DC power supply.

The Molten MIDI T Programming Utility requires Windows XP, Vista, Windows 7, 8, or Mac OSX version 10.5 or later, and an attached Standard MIDI Output Device. Cheap USB MIDI devices will not work. We cannot guarantee that your MIDI interface will work. Click here to purchase a USB MIDI device (Mac or PC) that we know works.

MM5


MOLTEN MIDI T
is powered by standard "BOSS" type 9-volt DC, 2.1mm, 100mA min., tip negative power supply (sold separately). Current draw ~ 100mA.

Dimensions: 4.5" (115mm) Wide x 3.2" (82mm) Deep x 1.9" (49mm) Tall

Bomb-proof design ensures flawless functioning.  Road-ready MIDI Machinery™.

Hand built in Oregon, USA by Molten Voltage.


 Owner's Manual MOLTEN MIDI T Owner's Manual

Molten MIDI T - Windows Programming Utility and Factory Presets file
- extract the .zip file then just copy the .exe file to your desktop and double click!
- put the Factory Presets .syx file in your Molten MIDI T folder and open it using the Programming Utility
- read the Software License Agreement before using

Molten MIDI T - MAC Programming Utility and Factory Presets file
- extract the .zip file then just copy the .dmg file to your desktop and double click!
- put the Factory Presets .syx file in your Molten MIDI T folder and open it using the Programming Utility
- read the Software License Agreement before using - OSX 10.5 or later

Molten MIDI T - Tempo Calculator



Digitech and Whammy are trademarks of the Harmon Music Group Inc. which is unrelated to Molten Voltage.
