Molten MIDI 2

Programmable Stompbox Whammy 4 Controller

by Molten Voltage





CLICK HERE IF YOU HAVE A WHAMMY 5

Molten MIDI 2

also sends synchronized
MIDI Clock,
Program Change and Song Select data

Take charge of your Whammy 4!

Have you ever wondered what your Whammy hears when it dreams?

Molten MIDI 2™ by Molten Voltage is a Programmable MIDI Stompbox that offers five new ways to control the Digitech Whammy 4™.

Molten MIDI 2 lets you hear notes that aren't normally available on the Whammy. Sequence those notes into elegant harmonies and improbable riffs.



Molten MIDI 2 also doubles as a synchronized or stand-alone MIDI Clock source for all your MIDI devices.





Use it with your stock Digitech Whammy IV - no modifications required!

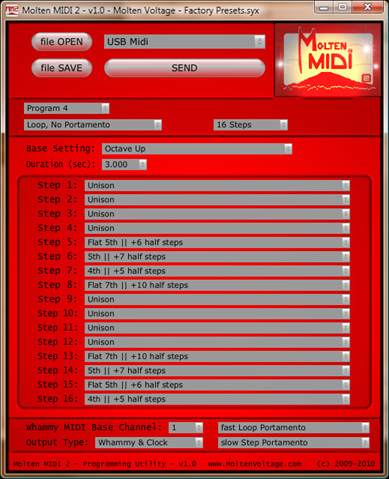

Molten MIDI 2 stores 15 programs at a time, that are created manually or using our computer-based Programming Utility.

The Programmer lets you trade files and share favorite loops and settings!

The free Programming Utility can be downloaded at the bottom of this page.



Molten MIDI 2 can also be programmed manually
as explained in the Owner's Manual
and seen on this Video
>>>





Follow Molten Voltage on Facebook:

Molten Voltage

.:.



Member of NAMM (National Association of Music Merchants)

Easy to Use!

Programs are selected using the footswitches and are indicated using the Whammy's own LEDs. The Whammy works normally when Molten MIDI 2 isn't sending data.

Programs can be up to 16 steps each, and come in 5 different flavors:

Loop Portamento programs cycle through sequences of virtual expression pedal positions. "Portamento" means you hear the Whammy "slide" from one step to the next, rather than "jump", as if the expression pedal is moving.

Loop, No Portamento programs are just like the Portamento version, except Whammy doesn't "slide" from one position to another, it "jumps".

Step Portamento programs step through sequences of virtual expression pedal positions each time the Step button is pressed. As the Whammy changes to a new "virtual" position, you hear it "slide" up or down to the new position.

Step, No Portamento programs are just like the Portamento version, except Whammy doesn't "slide" from one position to another each time Step is pressed, it "jumps".

Different Settings programs step through selected Whammy settings each time the Step button is pressed. The virtual position of the expression pedal is not affected.

MIDI Sync!

When configured in Whammy & Clock mode, Molten MIDI 2 sends synchronized MIDI Clock data whenever a Loop is playing. You can use the MIDI Clock output to control sequencers, drum machines, and other MIDI-based effects like the BOSS Slicer [SL-20].

What's more, Molten MIDI 2 sends parallel Program Change and Song Select data to keep all your MIDI devices on the same page.

Even if you don't own a Whammy, in Clock Only mode, Molten MIDI 2 works as a tap tempo MIDI Clock generator.

Daisy chain your Whammy to the MIDI Thru on any other MIDI device that passes unchanged information appearing at its MIDI IN jack from Molten MIDI 2.

REVIEWS

Click here to see what has to say

and

and

Connections

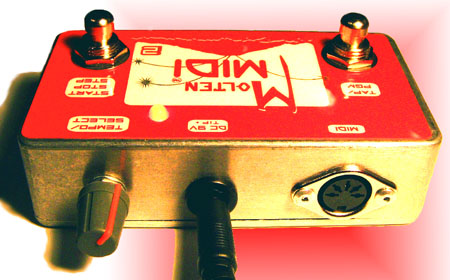

Molten MIDI 2 connects to your stock Whammy using a standard MIDI cable.

Molten MIDI 2 requires a separate or isolated 2.1 mm, tip-positive, 9 volt DC power supply.

The Molten MIDI 2 Programming Utility requires Windows XP, Vista, Windows 7, or Mac OSX version 10.4 or later, and an attached Standard MIDI Output Device. Read the Software License Agreement in the .zip file before using.

Check this forum for a listing of Known Compatible Devices.

Devices that are built to the Standard MIDI Specification should work, but some have trouble with long system messages. We cannot guarantee that your MIDI interface will work unless it appears on the list. Please let us know what other MIDI interfaces you have had success with, so we can expand our list!




Pricing

Molten MIDI 2 | $125

9 volt DC Power Supply, 2.1mm, Tip Positive | $15

Compatible USB MIDI Device (PC and Mac) | $39.95

1 Foot MIDI Cable - Black or Red | $7.50

3 Foot MIDI Cable - Red or Black | $8.50

3 Foot Pro MIDI Cable | $10.95



Click here to ORDER



Please send us an email if you have any questions.





Downloads

Molten MIDI 2 - Owner's Manual

Molten MIDI 2 - Windows Programming Utility and Factory Presets file
- extract the .zip file then just copy the .exe file to your desktop and double click!
- put the Factory Presets .syx file in your Molten MIDI 2 folder and open it using the Programming Utility

- read the Software License Agreement before using

Molten MIDI 2 - MAC Programming Utility and Factory Presets file

- extract the .zip file then just copy the .dmg file to your desktop and double click!
- put the Factory Presets .syx file in your Molten MIDI 2 folder and open it using the Programming Utility

- read the Software License Agreement before using

Molten MIDI 2 - Tempo Calculator





Did you know Molten Voltage Professional modifies the Whammy 4 to add True Bypass, Blend Controls, and LED replacements? Click here for more info!

Click here if you have a Whammy 5 - we now offer Molten MIDI 5 for the Digitech Whammy 5!
