Molten Voltage is proud to offer eight different modifications to your Digitech Whammy IV (WH-4) pedal,
seven of which we invented:

~ Pitch Limiter Controls ~

We can add rotary controls which allow you to change the upper or lower limits of the expression pedal!

With these controls you can dial in any pitch between three octaves down (when in the divebomb mode) and two octaves up. Whichever pitches you select set the limits of the expression pedal.

The controls also work in any of the harmony settings allowing you to dial in any harmony between one octave down and one octave up. You can order just one Pitch Limiter Control, but by using both Pitch Limiter Controls, you can dial in any combination of harmony settings between an octave down and an octave up. To do so, rock the expression pedal back and dial in the Lower Pitch Limter Control first, then rock the expression pedal foward and dial in the Upper Pitch Limiter Control.

Our Upper and Lower Pitch Limiter Controls add a whole new dimension to the Whammy. Check out this video to see the Pitch Limiter Controls in action as well as all the other mods:

~ Pitch Limiter Switches ~

We can add low-profile heavy-duty mini-toggle switches that switch on and off the Upper or Lower Pitch Limiter Controls.

~ Pitch Limiter Bypass Footswitch ~

We can add a jack and an external footswitch to bypass one or both Pitch Limiter Controls.

~ Footswitch Mode Select Jack ~

We can add a 1/4" jack so you can plug in any normally open [off] momentary pushbutton switch and step sequentially through Whammy's settings.

Whammy's rotary encoder will still function, but once in a while after using the rotary encoder the footswitch will stop working until you spin the encoder once or twice again. However if you just stick with the footswitch, you won't have this problem.

Note that you will need a normally open [off] momentary pushbutton switch with a 1/4" connector if you don't already have one.

~ True Bypass ~

We can add true bypass to your Whammy using a heavy duty 3PDT switch and a bright orange LED indicating when the effect is engaged. We also replace the original Whammy 4 pushbutton switch with a super rugged mini pushbutton mounted on top.

~ LED Replacement ~

We can replace any of the stock red LEDs on your Whammy in one of eight different colors so you can tell what mode you are in onstage at a glance.

Specify both Color and Mode.

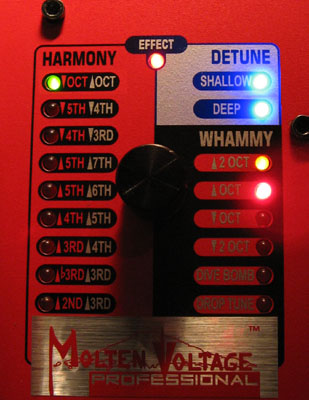

Shown are Green Diffused (Octave Down>Octave Up); Yellow Transparent (5th Up>7th Up); Blue Transparent (Shallow Detune); Blue Diffused (Deep Detune); Orange Clear (2 Octaves Up); Orange Diffused (Octave Up); Yellow Diffused (Drop Tune); and Red Transparent (2 Octaves Down and Effect On indicator).

The actual colors are much more vivid and accurate than shown in this photo.

~ MIDI Controllers ~

Molten Voltage also manufactures Molten MIDI, a MIDI controller which comes pre-programmed with ten killer settings for the Whammy 4. Click here to check it out.

~ Ordering ~

To order, you will need to send us an email describing all the Whammy 4 mods you want and tell us the address where we will be shipping the finished product.

We will send you a PayPal money Request which itemizes the cost of your order.

You will then prepay with PayPal (you don't have to sign up for an account if you don't want to). Once payment is confirmed, we will forward shipping instructions.

Mods take 1-2 weeks and are returned via USPS Priority Mail.

You can pay by check or money order but work will not begin until your check clears. Please email us for details.

Email us your Order at: Questions@MoltenVoltage.com

~ Pricing ~

MOD DISCOUNTS!!! (discounts do not apply to the external footswitches or LED replacements)

Take $20 off each additional mod after the first one: $20 off two mods, $40 off three mods, $60 of four mods, etc.

All prices include parts:

Upper Pitch Limiter Control	$55
Lower Pitch Limiter Control	$55
Pitch Limiter Toggle Switch - turn one pitch limiter on and off - specify which limiter you want the switch to control (obviously you need a pitch limiter control mod, and yes the discount applies, so adding a switch is only $25 if you order the Pitch Limiter Control at the same time)	$45
Single Pitch Limiter Bypass Footswitch - includes Jack, Footswitch, and 6 Foot Cable - requires one Pitch Limiter Control mod	$45
Dual Pitch Limiter Bypass Footswitch - includes Jack, Footswitch, and 6 Foot Cable - requires both Pitch Limiter Control mods	$55
Footswitch Mode Select Jack - requires a normally open [off] 1/4" footswitch	$45
External Footswitch for Footswitch Mode Select Jack - requires the Footswitch Mode Select Jack mod and a 1/4" mono cable	$40
Bypass Switch Conversion to Footswitch Mode Select Button with Bypass Heavy-Duty Mini Pushbutton Replacement - turn your stock bypass button into the mode select footswitch and replace the stock bypass button with a miniature heavy-duty pushbutton mounted on top - this option is ideal if you already use a bypass loop box with your Whammy	$50
Dual External Footswitch for Mode Select Jack AND Upper Pitch Limiter Control Bypass - includes Jack, Footswitch, and 6 Foot Cable - requires Upper Pitch Limiter Control mod but INCLUDES Footswitch Mode Select Jack mod	$65
True Bypass with Orange LED, Black Bezel and Heavy-Duty Pushbutton Replacement	$65
True Bypass with Heavy-Duty Pushbutton Replacement but no LED	$55
LED Replacement Specify both Color and Mode. Price is $10 for the first one, $5 for each additional one. Blue Transparent Blue Diffused Green Diffused Yellow Transparent Yellow Diffused Orange Clear Orange Diffused Red Transparent	$10 [+ $5]

Priority Mail Flat Rate shipping with Delivery Confirmation will be added to your total.

Footswitches are not sold separately unless you previously had Whammy 4 mods performed by Molten Voltage.

If there is something you do not see, please send us an email and we will let you know whether it is possible and how much it will cost.

Disclaimer:
Each of these modifications permanently alters your Whammy 4 pedal and undoubtedly voids your Digitech warranty. Digitech has nothing to do with these modifications and Molten Voltage is in no way related to Digitech other than having a great appreciation for their unique products.
