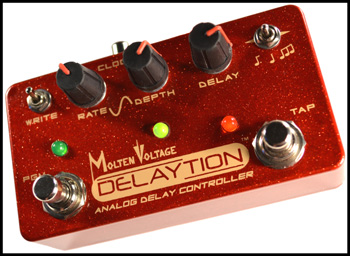

Delaytion™ is an easy-to-use analog delay control station, featuring tap tempo, modulation, and four program storage. Delaytion controls the MXR Carbon Copy and Malekko Ekko 616 delays.
Key Features:
We also offer MIDI Delaytion if you want to store 128 presets and sync to MIDI Clock! |
Molten Voltage
Delay Mods
Delaytion works with modified analog delays.
The delay knob is removed and an RCA jack is put in its place. You can still manually change the delay time with Delaytion's delay knob.
Molten Voltage offers Delaytion with new, modified MXR Carbon Copy Delays.
Molten Voltage offers Delaytion with new, modified Malekko Ekko 616 Delays.
Molten Voltage offers Delaytion with new, modified Malekko Dark Ekko Delays.
Molten Voltage Professional can also modify your Carbon Copy or Malekko Ekko Analog Delay.
You can also purchase the Delaytion pedal separately and perform the Carbon Copy or Malekko Ekko mod yourself. The Delaytion pedal comes with an extra RCA jack and cable.
Now Modding Carbon Copy Bright!!!
Why modify the MXR Carbon Copy Analog Delay?
1) Tap Tempo timing
2) 3 Delay Ratios: dotted eighth (like U2);
quarter note (tap timing); and
triplet (swing!)
3) Create and Recall your 4 Favorite Settings
4) Wider Modulation Control Ranges
5) No need to open up the pedal to change modulation ratio and depth...
This is how you currently have to change the moduation rate and depth on the MXR Carbon Copy. Seriously.
Click here for more mod information.
Email us with any questions about modifying your MXR Carbon Copy Analog Delay.
Why modify the Malekko Ekko 616 Analog Delay?
1) Tap Tempo timing
2) 3 Delay Ratios: dotted eighth (like U2);
quarter note (tap timing); and
triplet (swing!)
3) Create and Recall your 4 Favorite Settings
4) Wider Modulation Speed and Depth Control Ranges with easier access controls
5) No need to bend over and find the un-stompable little button to engage modulation...
Click here for more mod information.
Email us with questions about modifying your Malekko Ekko 616 Analog Delay.
Delaytion is powered by standard "BOSS" type 9-volt DC, 2.1mm, 200mA min., tip negative power supply
(sold separately).
Current draw ~ 120mA.
Delaytion Dimensions: 4.5" (114mm) Wide x 2.8" (71mm) Deep x 2.0" (51mm) Tall
MXR Carbon Copy Dimensions: 2.6" (66mm) Wide x 4.5" (115mm) Deep x 2.1" (54mm) Tall
Malekko Ekko Dimensions: 2.6" (66mm) Wide x 4.5" (115mm) Deep x 2.1" (54mm) Tall
Bomb-proof design ensures flawless functioning. Road-ready MIDI Machinery™.
Hand built in Oregon, USA by Molten Voltage.
Delaytion Owner's Manual
MXR, Malekko, and their product names are trademarks of their respective companies and are unrelated to Molten Voltage.
